The patented Zephyr Integrated Drive System™ is specifically designed as a drop-in replacement for the current gearbox fan drive. The fan height in the Fan Stack is critical to cooling performance because the fan has to sit at the throat region of the fan stack in order to provide proper fan performance. The Zephyr is specifically designed to maintain or correct the fan height in the Fan Stack.

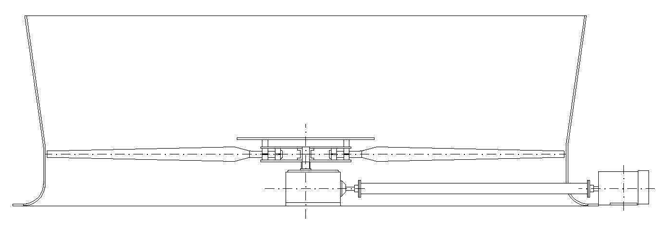

 Current gearbox fan drive system with induction motor, drive shaft, couplings and right angle gear box.

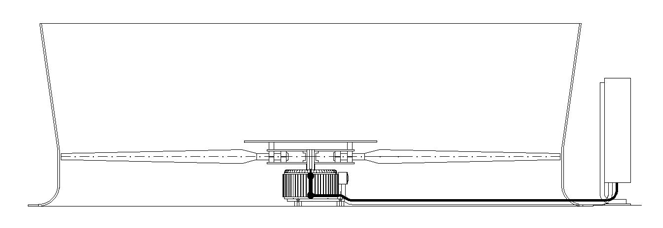

 Zephyr Direct Drive with Variable Frequency Drive.
 |

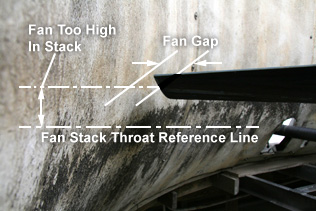

| Misapplication of gearbox fan drive with fan blade not matched to fan stack throat resulting in fan head loss and reduced cooling performance. |
 |

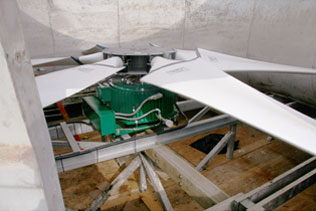

| Zephyr Integrated Drive System installed with four bolt installation on existing ladder frame and cooling tower structure. |
 The Zephyr is a drop-in replacement
for the gearbox fan drive. The Zephyr:
- follows conventional design standards
- does NOT require any structural modifications
- is mounted to the existing ladder frame with a simple four bolt installation
- eliminates the drive shaft, couplings and tedious alignments
- fan hub mounting is identical to the gearbox
- is designed to electrical area classification Class 1, Div. 2, Groups B, C & D
- is sealed to IP64.
|
The Zephyr is proudly made in the USA.
